180 Chapter 10 Testing EDID

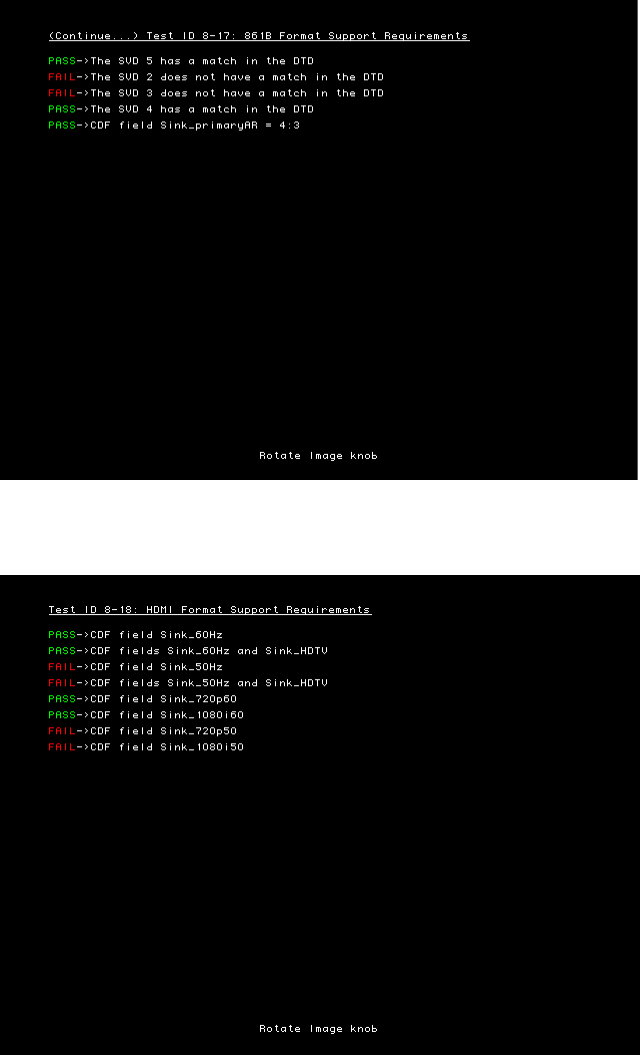

Testing HDMI Format Support Requirements (Test ID 8-18) - This test verifies that Sink
DUT indicates support for all required video formats in its EDID.
