802BT/802R Video Test Generator User Guide 179

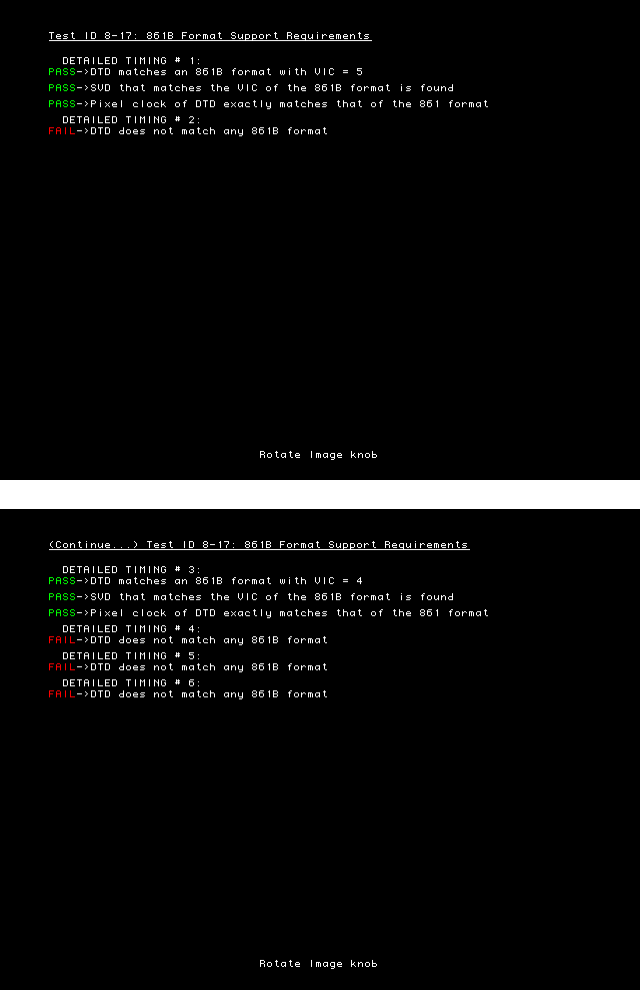

Testing 861B Format Support Requirements (Test ID 8-17) - This test verifies that no
861B-defined video format is declared only in a Detailed Timing Descriptor.
