178 Chapter 10 Testing EDID

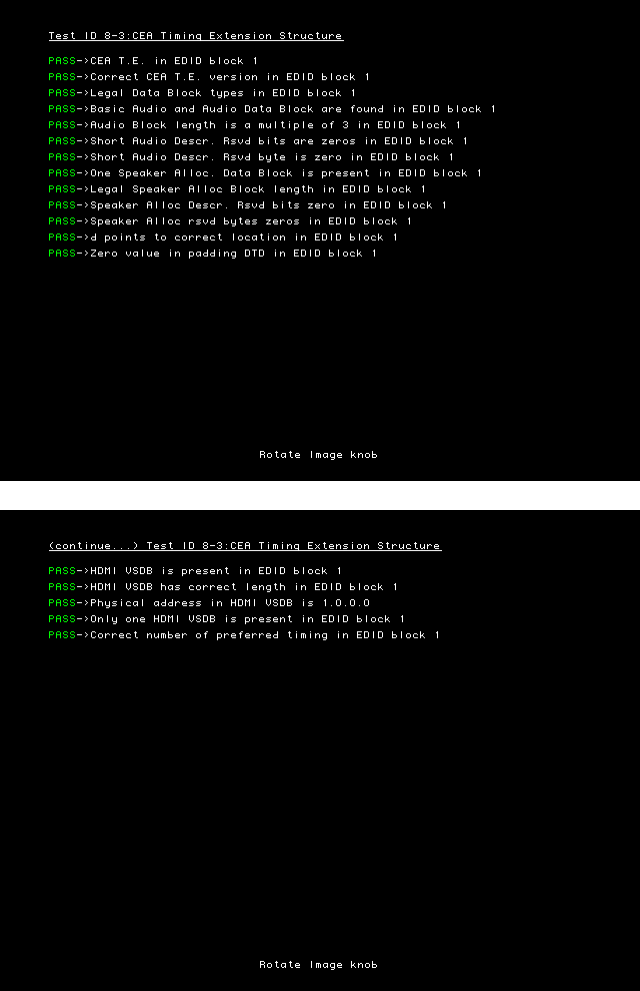

Testing CEA timing extension structure (Test ID 8-3) - This test verifies that the data in any
CEA Timing Extension present in EDID is formatted properly and meets all aspects of the
relevant specifications.
